Product selection from SQUARE D

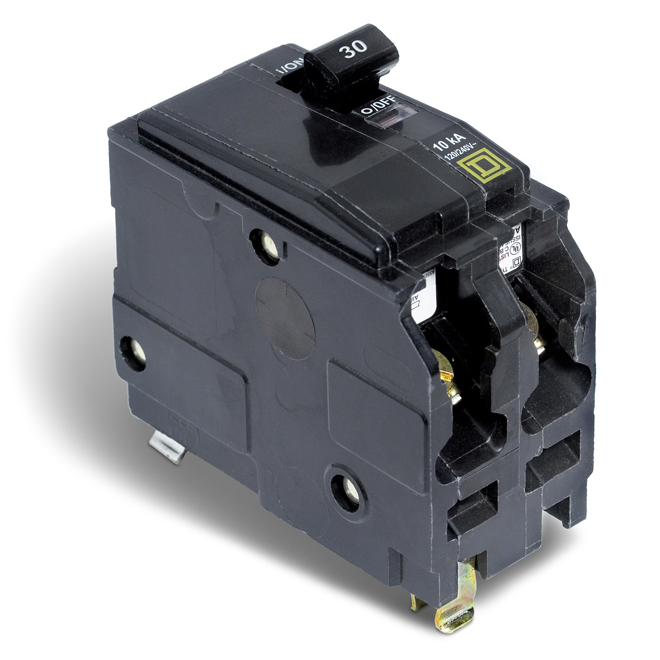

30-A 2P QO Circuit Breaker

Article #0265007 Item #000071493 Model #QO230CP Format 30AX120/240VX2POLES
43 . 99 Each
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Pick-Up  +
Most orders placed before 2:00 PM will be ready for a same day pickup. Some exceptions apply. You will be notified by email when your order is ready for pickup. More Information.
3 in Store
Order now, pickup as early as 11:00 AM tomorrow!
Delivery +
Get it by Friday, November 22
Most orders will ship next business day. Some orders may take up to 7-14 days (where inventory is not available in store). Delivery time may vary due to factors beyond our control. You will receive an email when your order has shipped. See all details.
Gift cards are delivered 2 to 5 days following the confirmation of your order in major urban areas and within 7 business days for remote locations. Gift Cards can be delivered across Canada, except the Yukon, Nunavut, Northwest Territories and Northern Quebec. See all details.
Sold online only. Total price includes delivery without any additional fees. Delivery time may vary due to factors beyond the control of RONA. Some restrictions may apply for remote areas. Signature may be required. Deliveries are made to threshold or curbside only, subject to carrier discretion.
The earliest delivery date displayed is only an estimate. The actual delivery date may change based on availability of products, or due to other circumstances beyond our control. Appliance delivery date can be selected in the checkout. If there is no option to schedule your appliance delivery, our team will contact you to schedule a delivery within 24 hours. Learn More.
RONA's third-party partners handle all express deliveries. Only available for select in-store items in sufficient stock at the participating selected store. Delivery address must be within delivery zone of the selected participating store. Weight limit of 1,475 Kg (3,250 lbs) per order. Not available on national/provincial holidays. Service may not be available due notably high in-store traffic, bad weather conditions or any other situation affecting the availability of the service. See all details.
Our expert center will contact you to schedule a delivery within 24 hours. The delay for delivery is an estimate and may vary according to the availability of products, or due to other circumstances beyond our control. Delivery prices only include curbside delivery, except for appliances. Delivery service is only available within a 50 km radius from the selected store (75 km for RONA+ stores). Additional charges may apply for installation. We will not leave deliveries at an unattended site – note that additional delivery charges may apply for subsequent delivery attempts. See all details.
Hassle-Free Returns 90 days to return or exchange in original condition and packaging. Read Return Policy
Warranty 1-year limited
icon-wishlist

Description

The exclusive QO Visi-Trip instantly identifies a tripped circuit breaker with a red indicator window. The Visi-Trip reduces the number of call backs, as well as the chance that other circuits will be turned off accidentally. This breaker will work only in Square D branded residential panels. Typical applications for a double pole 30 Amp breaker include short circuit and overload protection for a hot water heater or clothes dryer. Provides overload and short circuit protection (240Vac). 10,000 Amperes Interrupting Rating (AIR). HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers. Slot/Robertson screws for wire termination. Option for padlocking breaker in oON” or oOFF” position.
  • Provides overload and short circuit protection (120/240 Vac)
  • Exclusive Visi-Trip red indicator
  • 10,000 Amperes Interrupting Rating (AIR)
  • HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers
  • Accepts aluminum or copper conductors
  • Can padlock breaker in on or off position
  • Slot/Robertson screws for wire termination
  • Limited lifetime warranty

Product specifications

Width Measurement
1-1/2-in
Warranty
1-year limited
Circuit Breaker Voltage
240
File/Certification Number
E84967
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
30-amp
Safety Listing
UL safety listing
Series Name
QO
Surge Protection
No
Type
Standard trip
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 1ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
30-A 2P QO Circuit Breaker is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Very Good Shipping was amazingly fast. Item was just as described and worked very well
Date published: 2022-12-14
