DEWALT Compact Table Saw - 10-in - 15 A
Article #00275707
Item #000359416
Model #DWE7480
Format 10"x15A
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Add to Cart
Hassle-Free Returns
90 days to return or exchange in original condition and packaging.
Read Return Policy
Warranty
3-year limited
Add to Cart
Description

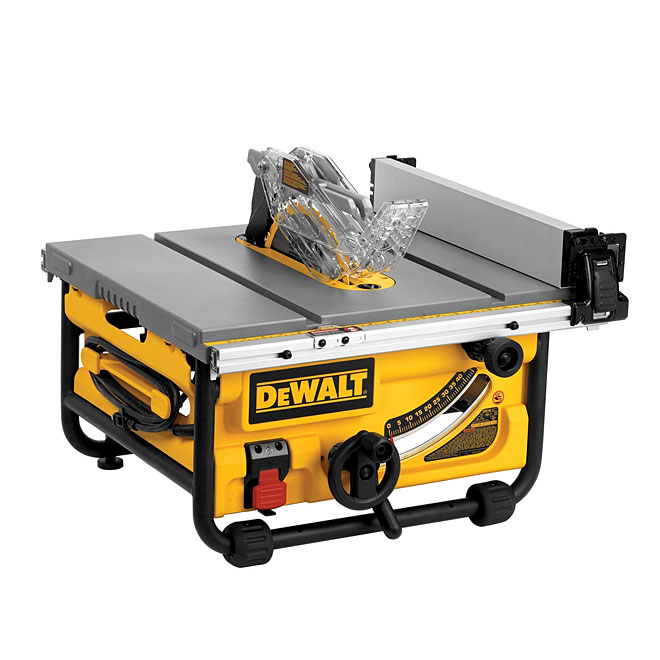

This DWE7480 Dewalt table saw is equipped with a 15-amp motor which quickly rips through hardwoods with ease. Rack and pinion telescoping fence rails make fence adjustments fast, smooth and accurate. The metal roll cage base offers greater durability than plastic bases. The 24T carbide blade enhances cut quality. For bevel applications, blade can be adjusted from 0 to 45 degrees. The table coating reduces friction for smoother cutting. Weighing only 48 lb, this table saw can easily be moved on and off the job. It is equipped with a dust port which allows for 2 1/2" vacuum hook up and minimizes clean-up time. An adjustable rear feet is designed to level the saw on uneven work surfaces.
- Includes saw, 10-in carbide-tipped blade and metal rolling base
- 15-amp motor generates 4,800-RPM to quickly rip through hardwoods with ease
- 10-in carbide-tipped blade is durable
- 24.5-in right rip capacity and 12-in left rip capacity easily accommodate a variety of larger shelving and trim materials
- Telescoping fence retracts for portability
- On-board storage provides access to push stick and guard components when not in use
- 3-year limited warranty
- 22-in L x 23-in W tabletop provides a roomy workspace
- Site-Pro modular guarding system allows for tool-free adjustments
Product specifications
Bevel Capacity(deg)
45
Blade Material
Carbide-tipped
Blade Size(cm)
25.4
Blade Size(in)
10
Blade Size(mm)
254.0
Battery Warranty Parts(Months)
0
Right Rip Capacity(cm)
62.23
Right Rip Capacity(in)
24.5
Right Rip Capacity(mm)
622.3
Safety Listing
UL safety listing
Saw Blade Diameter
10-in
Series Name
N/A
Special Warranty Labor(Months)
0
Special Warranty Parts(Months)
0
Spindle Lock
No
Table Height(cm)
35.306
Table Height(in)
13.9
Table Height(mm)
353.06
Table Length(cm)
55.88
Table Length(in)
22
Table Length(mm)
558.8
Table Width(cm)
55.88
Table Width(in)
22
Table Width(mm)
558.8
Type
Benchtop
Voltage
120
Warranty
3-year limited
Weight(kg)
21.7728
Weight(lb)
48
Worm Drive
No
Amps
15
Arbor Diameter
5/8-in
Auxiliary Handle
No
Base Warranty Labor(Months)
36
Base Warranty Parts(Months)
36
Battery Warranty Labor(Months)
0
Caster Platform Included
No
Cutting Depth(cm)
7.9375
Cutting Depth(in)
3.125
Cutting Depth(mm)
79.375
Depth Control
Yes
Dust Handling
Port
File/Certification Number
TBD/Transition
Item Disclaimer
In-use images - materials or accessories are not included
Left Rip Capacity(cm)
30.48
Left Rip Capacity(in)
12
Left Rip Capacity(mm)
304.8
Maximum Blade Speed(RPM)
4800
Maximum Depth at 45 Degrees(cm)
5.715
Maximum Depth at 45 Degrees(in)
2.25
Maximum Depth at 45 Degrees(mm)
57.15
Maximum Depth at 90 Degrees(cm)
7.9375
Maximum Depth at 90 Degrees(in)
3.125
Maximum Depth at 90 Degrees(mm)
79.375
Micro Adjust Rip Fence
No
Motor Warranty Labor(Months)
36
Motor Warranty Parts(Months)
36
Portable
Yes
Repetitive Cut Marking System
No
Frequently bought together
Can I mount it on a bench? What is the hole pattern and diameter?
DEWALT Compact Table Saw - 10-in - 15 A is rated
out of
5 by
71.
Rated 5 out of
5
by
Kens woodshop from
Need wrenches
I just got this saw and it didn't come with a set of saw blade wrenches or miter gauge.
I have not used it yet, it did sound good when I turned it on.
Date published: 2020-02-08
Rated 5 out of
5
by
Wayne C from
Quality Saw
The rip fence is one of the best features on this great saw. Easy to use with controls well laid out. Well made and easy to move around.
Date published: 2019-12-28
Rated 5 out of
5
by
Larry of FL from
Best Table Saw I've owned
Bought this DWE7480 today to replace my old Harbor Freight table saw (motor quit).
Using to install laminate flooring, it cuts great with precision.
Date published: 2019-12-27
Rated 4 out of
5
by
Edmond from
Fragile Mitre gauge
On the first use worked flawlessly plenty of power, I mounted on the DW7440RS stand when I tilted it up the miter gauge slid on to the garage floor and the pivot broke making it useless the distance was only 2 feet. I would have given 5 stars but disappointed with the miter gauge
Date published: 2019-11-22
Rated 5 out of
5
by
Anatoliy from
Excellent tool
[This review was collected as part of a promotion.] DWE74080 Table Saw is an excellent tool.
It has an ergonomically perfect size to carry around and its weight is optimized for stability during cutting. Integrated handles are very helpful and the feet maintain a good grip on a surface.
Repositioning the fence on either side of the blade is very simple, accurate and quick.
The cut width adjustment mechanism is very easy to use and predictable, clamping is secure.
The motor is powerful and the dust removal port perform well if hookup to a powerful vacuum.
I have only one complain – the miter gauge.
The miter gauge on this saw has plastic protractor with a very small clamping screw.
This saw must be equipped with a different miter gauge to match the performance.
For some reason the company provides well-constructed miter gauges for other models of similar equipment.
Date published: 2019-11-12
Rated 5 out of
5
by
Green Roof from
Table saw versatility
[This review was collected as part of a promotion.] I bought this compact 10" DeWALT table saw two + years ago. I recently used it to rip 50+ sheets of plywood to repair my roof. Have used it to trim hardwood boards from an old building my neighbor gave me. I recently used it to cut some sheet metal. Has worked flawlessly. Great machine !!
Date published: 2019-11-11
Rated 5 out of
5
by
DW101 from
Perfect for my small garage workshop.
[This review was collected as part of a promotion.] After reading and watching reviews about this saw I decided to get one and I’m glad I did. I am a weekend woodworker and have a small garage workshop and this saw is the perfect size for me. It is easy to use and makes accurate cuts. The saw is well made yet light enough I can easily move it around when I’m not using it.
Date published: 2019-11-10
Rated 5 out of
5
by
Mildogg from
Perfect for my small shop
[This review was collected as part of a promotion.] I got this about 3 weeks ago and I couldn’t be happier! The compact size makes it perfect for my tight shop, while the power never seems to lack, even while ripping hardwoods. The fence is perfectly square and the rack and pinion feature makes it a breeze to adjust. I would recommend this to anyone in the market for a table saw, even over many of the full sized models I have used.
Date published: 2019-11-09
