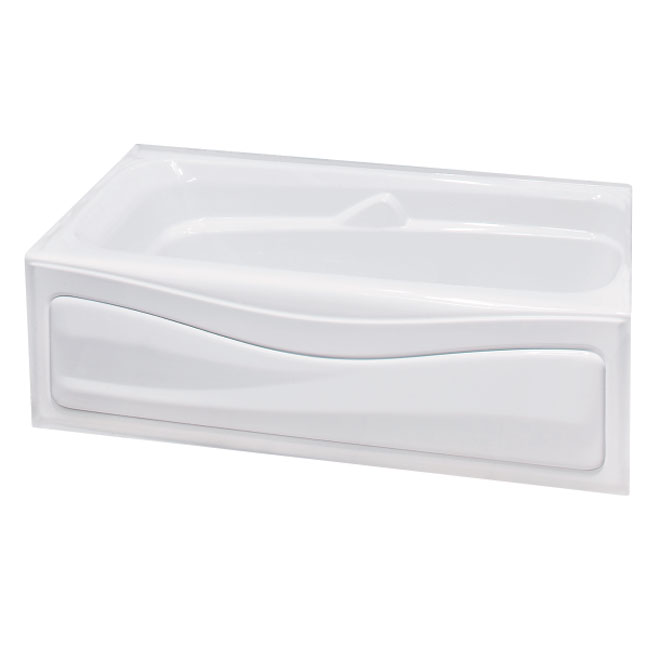

Maax Corinthia II Acrylic Bathtub with Right-Hand Drain - 30-in x 60-in - White

Article #06385185 Item #000340627 Model #105684002001104 Format 60x30x20"
Save $79.35
449 . 65 Each
$529.00
Save $79.35
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Hassle-Free Returns 90 days to return or exchange in original condition and packaging. Read Return Policy
Warranty 25-year limited
icon-wishlist

Description

The Maax Corinthia II white tub features an acrylic design with tiling flange, integrated panelling and 3" underdrain clearance for easy plumbing installation. Made from superior quality material, this bathtub is easy to clean. This 60" x 30" x 21 3/4" tub is designed for right-side installation but is also available with left-side installation. Proudly made in Canada. Backed by a 25-year limited warranty.
  • Alcove installation
  • Integrated flange and apron
  • Includes 3-in above-the-floor-rough (AFR), which allows you to pipe directly under the bathtub, without having to relocate the existing drain
  • Textured bottom
  • Backed by a 25 year limited warranty

Product specifications

Actual Height(cm)
53.34
Actual Height(in)
21
Actual Height(mm)
533.4
Actual Length(cm)
151.765
Actual Length(in)
59.75
Actual Length(mm)
1517.65
Actual Width(cm)
75.8825
Actual Width(in)
29.875
Actual Width(mm)
758.825
ADA Compliant
No
Adjustable Jet Direction
No
Adjustable Jet Flow
No
Amperage
0
Assembled Weight(kg)
36.288
Assembled Weight(lbs.)
80
Barrier Free
No
Base Warranty Labor(Months)
0
Base Warranty Parts(Months)
300
Bath Therapy Type
Soaking bathtub
Bath Voltage
N/A
Bathing Capacity
1-person
Bathtub Faucet Included
No
Bathtub Type
Alcove
Collection Name
Corinthia II
Color/Finish Family
White
Common Length(cm)
152.4
Common Length(in)
60
Common Length(mm)
1524.0
Common Width(cm)
76.2
Common Width(in)
30
Common Width(mm)
762.0
Compatible Drain
PVC drain
Control Type
N/A
Coordinating Wall Surround
N/A
Detachable Skirt
No
Door Swing
N/A
Drain Included
No
Drain Location
Right
Freestanding Type
N/A
Hand Shower Included
No
Hardware Color Family
N/A
Hardware Finish
N/A
Heater Included
No
Heater Warranty Labor(Months)
0
Heater Warranty Parts(Months)
0
Installation Type
Alcove
Integrated Seat
No
Lighted
No
Manufacturer Color/Finish
White
Material
Acrylic
Max Flow Rate (Handheld)
N/A
Number of Air Injectors
0
Number of Jets
0
Pillow Included
No
Proprietary Material
Acrylic
Pump Warranty Labor(Months)
0
Pump Warranty Parts(Months)
0
Remote Control Included
No
Shape
Rectangular
Skirted
Yes
Smart Compatible
No
Soaking Depth(cm)
44.45
Soaking Depth(in)
17.5
Soaking Depth(mm)
444.5
Therapy
Bathtub
Toilet Included
No
Tub Door Included
No
Walk-In
No
Wall Surround Type
N/A
Warranty
25-year limited
Water Capacity(gal)
39
Water Capacity(l)
147.6306
Threshold Profile
No threshold

Looking for installation instructions for Max corinthia 11 specifically. Support underneath too high to embed in mortar like lots do and tile flange. Do you drill through and screw the flange to the wall studs or other?

Asked by: Anonymous
To view the installation manual for the Corinthia II, please visit our website (MAAX.ca) and enter model # 105684 into the search field at the top. Once you have the model pulled up, please scroll below the main product picture to the link for the installation manual. If you have any other questions, we invite you to contact our team of MAAX product experts at 1-877-GET-MAAX (1-877-438-6229). Our hours of operation are Mon-Fri, 8am-5pm Eastern time. Thank you for your interest in MAAX!
Answered by: MAAX Customer Support
Date published: 2024-05-08
  • y_2024, m_7, d_3, h_6CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_en_CA, sid_06385185, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_rona
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 10ms
  • QUESTIONS, PRODUCT
Maax Corinthia II Acrylic Bathtub with Right-Hand Drain - 30-in x 60-in - White is rated 3.0 out of 5 by 5.
Rated 5 out of 5 by from excellent produit j ai acheter ce produit et e suis tres satisfait ,produit tres leger
Date published: 2022-02-25
Rated 5 out of 5 by from J'adore J'ai pris 2 fois mon bain depuis l'installation et j'adore
Date published: 2022-01-11
Rated 1 out of 5 by from Not an adult bath, pas un bain pour adult! Bought 3 weeks ago. Looked ok when installing it.... but after first bath we soon regretted buying. Too narrow. Not strong built as it cracks whenever we get in or out and its not the walls cracking .edges are soo thick ... never buy a bath online go to the store and ask questions
Date published: 2020-05-15
Rated 3 out of 5 by from Great but small We put in this tub in my kids bathroom, it's nice and comfortable but definately a kids tub. It's small for an adults tub
Date published: 2020-03-01
Rated 1 out of 5 by from Inconfortable Inconfortable et très étroite si je pouvais mettre aucune étoile c’est la note que je lui aurais attribué!
Date published: 2019-09-09
